# kernel-examples

**Repository Path**: accelerator_v8/kernel-examples

## Basic Information

- **Project Name**: kernel-examples
- **Description**: Here are the example projects which explain how to use AMCAX geometry kernel library for 3D modeling.
- **Primary Language**: C++
- **License**: Not specified
- **Default Branch**: main
- **Homepage**: None
- **GVP Project**: No

## Statistics

- **Stars**: 0
- **Forks**: 1
- **Created**: 2024-09-23
- **Last Updated**: 2024-09-23

## Categories & Tags

**Categories**: Uncategorized

**Tags**: None

## README

[![en-us](https://img.shields.io/badge/en-us-yellow.svg)](./README.md) [![中文-简体](https://img.shields.io/badge/%E4%B8%AD%E6%96%87-%E7%AE%80%E4%BD%93-red.svg)](./README.zh_cn.md)

### 每一个 example 均可通过 cmake 命令执行，步骤如下：

#### 一、设置系统环境变量

1.点击环境变量

2.点击新建

3.将下载的 AMCAXKernel 包解压，然后添加其路径到 CMAKE_PREFIX_PATH 中

<div align = left><img src="https://img2.imgtp.com/2024/05/27/tauqcQGz.png" width=50%; height=auto></div>


#### 二、打开终端

	1. 切换到每个模块对应的 example 文件夹下

	2. mkdir build

	3. cd build

	4. cmake ..

	5. cmake --build . --config release 或 cmake --build . --config debug

	6. cd .\Release\ 或 cd .\Debug\

	7. .\test.exe

##### 以下以 part 的 example1 为例

1. 切换到 example1 文件夹下

<div align = left><img src="https://s2.loli.net/2024/08/20/fxNGCTsyzEDBoY6.png" width=45%; height=auto></div>

2. mkdir build

<div align = left><img src="https://s2.loli.net/2024/08/20/k9ZqWcXLtCbIABu.png" width=45%; height=auto></div>

3. cd build

<div align = left><img src="https://s2.loli.net/2024/08/20/uswo18SMBEcdt6U.png" width=45%; height=auto></div>

4. cmake ..

<div align = left><img src="https://s2.loli.net/2024/08/20/uhj8y5Wrw4xkmls.png" width=90%; height=auto></div>

5. cmake --build . --config release

<div align = left><img src="https://s2.loli.net/2024/08/20/6qiu8cCgxHJnOjS.png" width=45%; height=auto></div>

6. cd .\Release\

<div align = left><img src="https://s2.loli.net/2024/08/20/hiTR6GFPtal4M5j.png" width=45%; height=auto></div>

7. ./test.exe

<div align = left><img src="https://s2.loli.net/2024/08/20/8KxPpD6lQW4TX5H.png" width=45%; height=auto></div>

### 如果依赖第三方库，步骤如下：

#### 有conan package的第三方库
	parallel-hashmap/1.37
	eigen/3.4.0
	onetbb/2021.10.0
	libpng/1.6.40
	zlib/1.3.1
	freetype/2.13.2
	boost/1.80.0
	cgal/5.5.2
	fmt/10.0.0
	spdlog/1.11.0

1. 在工程下面创建conanfile.txt，更改相应的内容（可参考https://docs.conan.io/2/tutorial/consuming_packages/build_simple_cmake_project.html）

2. 下载安装conan[2.5.0]

	（1）pip install -v conan==2.5.0

3. 给conan添加conan-amcax源，设置用户名和token

	（1）conan remote add conan-amcax http://192.168.11.72:8081/artifactory/api/conan/conan-amcax

	（2）conan remote login -p cmVmdGtuOjAxOjE3NTMzNDA1MDc6dWo5YUZZM3RoMmZKdG9KOEt0aUZSTEY1alVL conan-amcax amcax-dev

4. 去除conancenter源

	（1）conan remote remove conancenter

5. 准备 conan profiles

	（1）从 http://192.168.11.72/softwares/conan_profiles.zip 下载 conan profiles

	（2）conan install . -of=build/release --build=missing -pr:b=./data/conan_profiles/msvc_2022_x64_release -pr:h=./data/conan_profiles/msvc_2022_x64_release（conan profiles 包的路径需改成自己的路径）

##### 以下以 nextmesh 的 example01 为例:(在终端PowerShell下执行）

1. pip install -v conan==2.5.0

2. conan remote add conan-amcax http://192.168.11.72:8081/artifactory/api/conan/conan-amcax

3. conan remote login -p cmVmdGtuOjAxOjE3NTMzNDA1MDc6dWo5YUZZM3RoMmZKdG9KOEt0aUZSTEY1alVL conan-amcax amcax-dev

4. conan remote remove conancenter

5. conan install . -of=build/release --build=missing -pr:b=./data/conan_profiles/msvc_2022_x64_release -pr:h=./data/conan_profiles/msvc_2022_x64_release

<div align = left><img src="https://s2.loli.net/2024/08/20/MESPIiAeXjzBZv5.png" width=75%; height=auto></div>

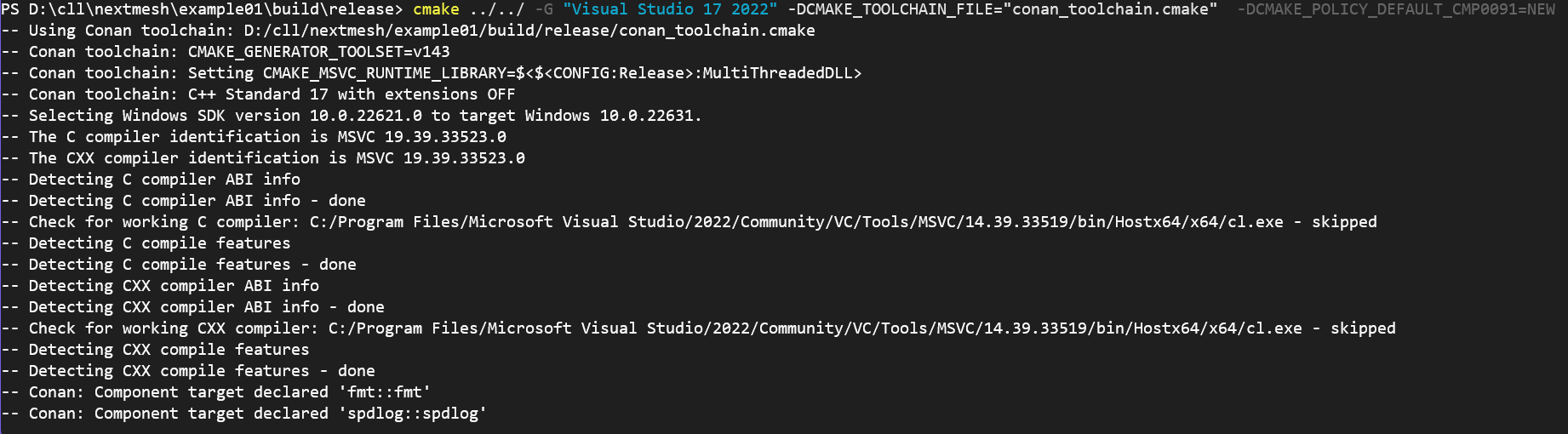

6. cmake ../../ -G "Visual Studio 17 2022" -DCMAKE_TOOLCHAIN_FILE="conan_toolchain.cmake"  -DCMAKE_POLICY_DEFAULT_CMP0091=NEW

<div align = left><img src="https://s2.loli.net/2024/08/20/m1EuJxg8pfSqzH6.png" width=65%; height=auto></div>

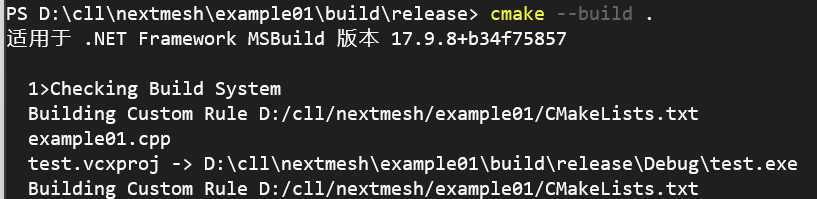

7. cmake --build .

<div align = left><img src="https://s2.loli.net/2024/08/20/Pmco6YSD2UhVBva.png" width=45%; height=auto></div>

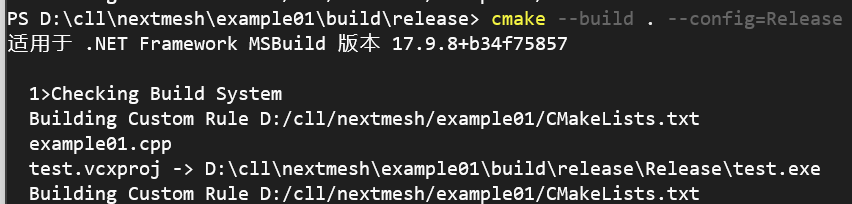

8.  cmake --build . --config=Release

<div align = left><img src="https://s2.loli.net/2024/08/20/atGHvDNeXfg32c8.png" width=45%; height=auto></div>

9. cd .\Release\

10. ./test.exe






​
