# kernel-examples

**Repository Path**: amcax-corp/kernel-examples

## Basic Information

- **Project Name**: kernel-examples
- **Description**: Here are the example projects which explain how to use AMCAX geometry kernel library for 3D modeling.
- **Primary Language**: C++
- **License**: Not specified
- **Default Branch**: main
- **Homepage**: None
- **GVP Project**: No

## Statistics

- **Stars**: 5
- **Forks**: 1
- **Created**: 2024-05-20
- **Last Updated**: 2025-07-31

## Categories & Tags

**Categories**: Uncategorized

**Tags**: None

## README

[![en-us](https://img.shields.io/badge/en-us-yellow.svg)](./README.md) [![中文-简体](https://img.shields.io/badge/%E4%B8%AD%E6%96%87-%E7%AE%80%E4%BD%93-red.svg)](./README.zh_cn.md)

### 每一个 example 均可通过 cmake 命令执行，步骤如下：

#### 一、设置系统环境变量

1.点击环境变量

2.点击新建

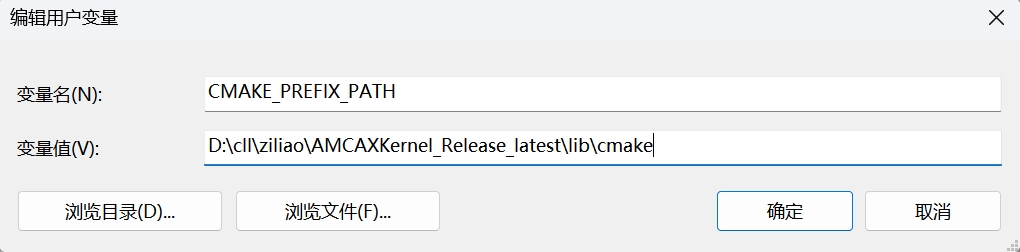

3.将下载的 AMCAXKernel 包解压，然后添加其路径到 CMAKE_PREFIX_PATH 中

<div align = left><img src="https://s2.loli.net/2024/09/30/abp5NK68YvyXQuR.jpg" width=50%; height=auto></div>


#### 二、打开终端

	1. 切换到每个模块对应的 example 文件夹下

	2. mkdir build

	3. cd build

	4. cmake ..

	5. cmake --build . --config release 或 cmake --build . --config debug

	6. cd .\Release\ 或 cd .\Debug\

	7. .\test.exe

##### 以下以 part 的 example1 为例

1. 切换到 example1 文件夹下

<div align = left><img src="https://s2.loli.net/2024/08/20/fxNGCTsyzEDBoY6.png" width=45%; height=auto></div>

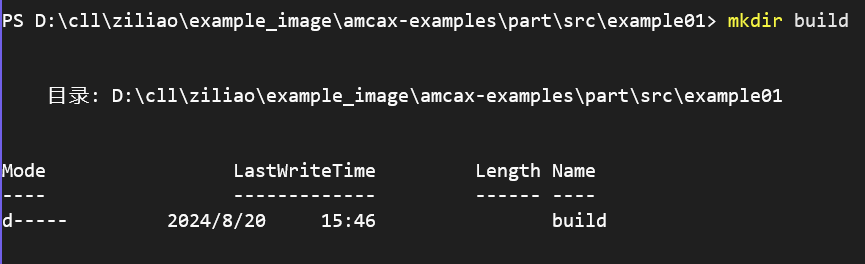

2. mkdir build

<div align = left><img src="https://s2.loli.net/2024/08/20/k9ZqWcXLtCbIABu.png" width=45%; height=auto></div>

3. cd build

<div align = left><img src="https://s2.loli.net/2024/08/20/uswo18SMBEcdt6U.png" width=45%; height=auto></div>

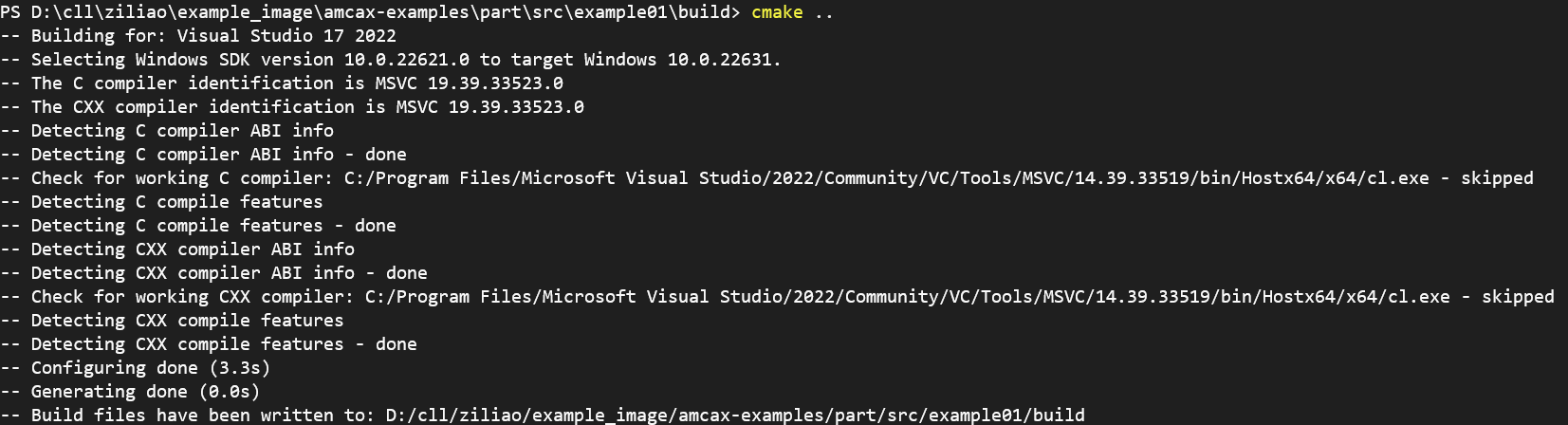

4. cmake ..

<div align = left><img src="https://s2.loli.net/2024/08/20/uhj8y5Wrw4xkmls.png" width=90%; height=auto></div>

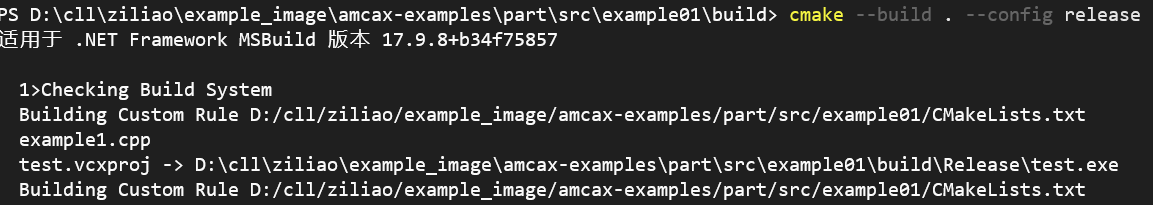

5. cmake --build . --config release

<div align = left><img src="https://s2.loli.net/2024/08/20/6qiu8cCgxHJnOjS.png" width=45%; height=auto></div>

6. cd .\Release\

<div align = left><img src="https://s2.loli.net/2024/08/20/hiTR6GFPtal4M5j.png" width=45%; height=auto></div>

7. ./test.exe

<div align = left><img src="https://s2.loli.net/2024/08/20/8KxPpD6lQW4TX5H.png" width=45%; height=auto></div>

注：某些example依赖conan进行第三方库的管理，请参考[Conan官网](https://conan.io/)获取详细指南。并且我们内核库使用 msvc_2022 编译。





​
