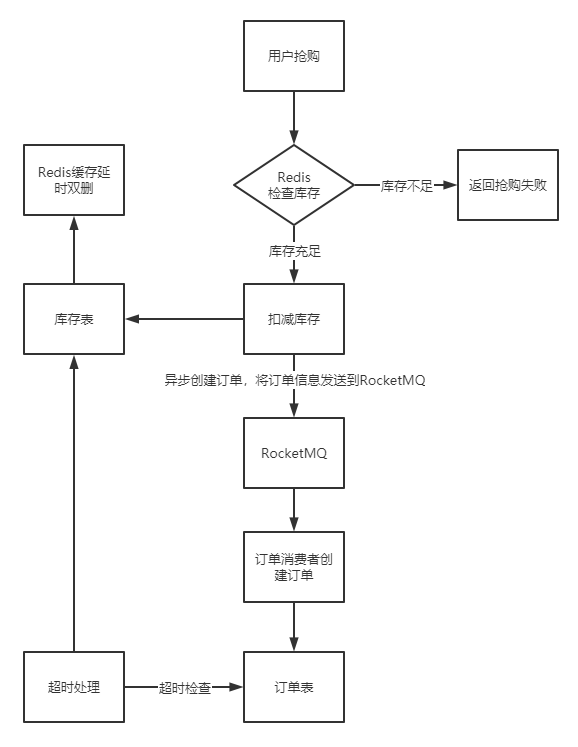

## 秒杀系统

![img](https://lc-qgLLpAND.cn-n1.lcfile.com/3017ad2bc3927807ade4.png/2020-12-27_135101.png)

### 秒杀系统需要考虑什么？

1. 不能超卖
2. 链接隐藏，防止用户在抢购前拿到链接，使用脚本进行抢购
3. 接口限流，防止系统崩溃
4. 防止单个用户频繁调用接口，抢购多件商品
5. 用户抢购结果应当尽量快速返回，提高用户体验

### 主要技术实现

springboot、MySQL、Redis、RocketMQ

### 数据表

1. my_stock

   ```mysql
   CREATE TABLE `my_stock` (
     `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主键，自增长',
     `name` varchar(255) DEFAULT NULL COMMENT '产品名称',
     `start_time` datetime DEFAULT NULL COMMENT '抢购开始时间',
     `quantity` int(11) DEFAULT NULL COMMENT '库存数量',
     `sale` int(11) DEFAULT NULL COMMENT '售出数量',
     PRIMARY KEY (`id`)
   ) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COMMENT='库存表';
   ```

2. my_order

   ```mysql
   CREATE TABLE `my_order` (
     `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主键，自增长',
     `stock_id` bigint(20) DEFAULT NULL COMMENT '库存id',
     `name` varchar(255) DEFAULT NULL COMMENT '产品名称',
     `state` int(11) DEFAULT NULL COMMENT '状态，0表示已下单，1表示已支付，2表示超时关闭',
     `create_time` datetime DEFAULT NULL COMMENT '下单时间',
     `pay_time` datetime DEFAULT NULL COMMENT '支付时间',
     PRIMARY KEY (`id`)
   ) ENGINE=InnoDB AUTO_INCREMENT=101 DEFAULT CHARSET=utf8mb4 COMMENT='订单表';
   ```

3. my_user

   ```mysql
   CREATE TABLE `my_user` (
     `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主键，自增长',
     `username` varchar(255) DEFAULT NULL COMMENT '用户名',
     PRIMARY KEY (`id`)
   ) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4 COMMENT='用户表';
   ```

### 代码实现

1. 创建一个springboot项目，pom文件如下：

   ```xml
   <?xml version="1.0" encoding="UTF-8"?>
   <project xmlns="http://maven.apache.org/POM/4.0.0"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
       <modelVersion>4.0.0</modelVersion>

       <parent>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-parent</artifactId>
           <version>2.1.0.RELEASE</version>
       </parent>

       <properties>
           <maven.compiler.source>1.8</maven.compiler.source>
           <maven.compiler.target>1.8</maven.compiler.target>
       </properties>

       <groupId>com.wangzhe</groupId>
       <artifactId>rocketmq_seckill</artifactId>
       <version>1.0-SNAPSHOT</version>

       <dependencies>
           <!--web依赖-->
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-web</artifactId>
           </dependency>
           <!--模板引擎-->
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-thymeleaf</artifactId>
           </dependency>
           <!--mysql-->
           <dependency>
               <groupId>mysql</groupId>
               <artifactId>mysql-connector-java</artifactId>
               <scope>runtime</scope>
           </dependency>
           <dependency>
               <groupId>org.mybatis.spring.boot</groupId>
               <artifactId>mybatis-spring-boot-starter</artifactId>
               <version>1.3.0</version>
           </dependency>
           <!--fastjson-->
           <dependency>
               <groupId>com.alibaba</groupId>
               <artifactId>fastjson</artifactId>
               <version>1.2.51</version>
           </dependency>
           <!--redis-->
           <dependency>
               <groupId>org.springframework.boot</groupId>
               <artifactId>spring-boot-starter-data-redis</artifactId>
           </dependency>
           <!--rocketmq-->
           <dependency>
               <groupId>org.apache.rocketmq</groupId>
               <artifactId>rocketmq-spring-boot-starter</artifactId>
               <version>2.0.3</version>
           </dependency>
           <!--guava-->
           <dependency>
               <groupId>com.google.guava</groupId>
               <artifactId>guava</artifactId>
               <version>19.0</version>
           </dependency>
       </dependencies>

       <build>
           <plugins>
               <plugin>
                   <groupId>org.springframework.boot</groupId>
                   <artifactId>spring-boot-maven-plugin</artifactId>
               </plugin>
               <plugin>
                   <groupId>org.mybatis.generator</groupId>
                   <artifactId>mybatis-generator-maven-plugin</artifactId>
                   <version>1.3.5</version>
                   <configuration>
                       <verbose>true</verbose>
                       <overwrite>false</overwrite>
                   </configuration>
                   <dependencies>
                       <dependency>
                           <groupId>mysql</groupId>
                           <artifactId>mysql-connector-java</artifactId>
                           <version>5.1.46</version>
                       </dependency>
                   </dependencies>
               </plugin>
           </plugins>
       </build>
   </project>
   ```

   配置文件application.properties

   ```properties
   server.port=9999

   #数据库
   spring.datasource.url=jdbc:mysql://localhost:3306/rocketmq_seckill?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
   spring.datasource.username=root
   spring.datasource.password=admin
   spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

   #Redis
   spring.redis.host=127.0.0.1
   spring.redis.port=6379

   #RocketMQ
   rocketmq.name-server=192.168.42.171:9876
   rocketmq.producer.group=my_order
   ```

2. 项目启动类

   ```java
   package com.wangzhe.rocketmq.seckill;

   import org.mybatis.spring.annotation.MapperScan;
   import org.springframework.boot.SpringApplication;
   import org.springframework.boot.autoconfigure.SpringBootApplication;
   import org.springframework.scheduling.annotation.EnableAsync;
   import org.springframework.scheduling.annotation.EnableScheduling;
   import org.springframework.transaction.annotation.EnableTransactionManagement;

   /**
    * @author wangzhe
    * @date 2020-12-23 15:22
    */
   @SpringBootApplication
   @MapperScan("com.wangzhe.rocketmq.seckill.mapper")
   @EnableTransactionManagement
   @EnableScheduling
   @EnableAsync
   public class SeckillApplication {
       public static void main(String[] args) {
           SpringApplication.run(SeckillApplication.class, args);
       }
   }
   ```

3. 实现接口：获取验证值

   该接口是为了防止用户在抢购前获取到完整的抢购链接。

   MyOrderController

   ```java
   /**
   * 获取验证值
   *
   * @param userId  用户id
   * @param stockId 库存id
   * @return 验证值
   */
   @RequestMapping(value = "/order/verifyHash", method = RequestMethod.GET)
   @ResponseBody
   public String getVerifyHash(Long userId, Long stockId) {
       return myOrderService.getVerifyHash(userId, stockId);
   }
   ```

   MyOrderServiceImpl

   ```java
   @Override
   public String getVerifyHash(Long userId, Long stockId) {
       // 检查抢购是否已经开始
       ValueOperations<String, String> ops = redisTemplate.opsForValue();
       String redisCache = ops.get("myStock:" + stockId);
       MyStock myStock;
       if (redisCache == null || redisCache.trim().equals("")) {
           myStock = myStockMapper.selectByPrimaryKey(stockId);
           if (myStock == null) {
               return "stockId error";
           }
           ops.set("myStock:" + stockId, JSON.toJSONString(myStock), 15, TimeUnit.MINUTES);
       } else {
           myStock = JSONObject.parseObject(redisCache, MyStock.class);
       }
       if (System.currentTimeMillis() - myStock.getStartTime().getTime() < 0) {
           return "not started";
       }
       // 检查用户是否合法
       MyUser user = myUserMapper.selectByPrimaryKey(userId);
       if (user == null) {
           return "user error";
       }
       // 生成验证值
       String verify = "my_salt" + stockId + userId;
       String verifyHash = DigestUtils.md5DigestAsHex(verify.getBytes());
       ops.set("verifyHash:" + stockId + ":" + userId, verifyHash, 15, TimeUnit.MINUTES);
       return verifyHash;
   }
   ```

4. 实现接口：抢购下单

   MyOrderController

   ```java
   /**
   * 令牌桶限流，每秒放行100个请求
   */
   private RateLimiter rateLimiter = RateLimiter.create(100);

   /**
   * 抢购下单
   *
   * @param userId     用户id
   * @param stockId    库存id
   * @param verifyHash 验证值
   * @return 抢购结果
   * success 表示抢购成功
   * fail 表示抢购失败
   * sale out 表示售完
   * not started 表示未开始
   * param error 表示参数错误
   * Illegal request 表示非法请求
   */
   @RequestMapping(value = "/order/commitOrder", method = RequestMethod.POST)
   @ResponseBody
   public String commitOrder(Long userId, Long stockId, String verifyHash) {
       String result;
       // 非阻塞式获取令牌
       if (!rateLimiter.tryAcquire(1000, TimeUnit.MILLISECONDS)) {
           result = "limit";
       } else {
           result = myOrderService.commitOrder(userId, stockId, verifyHash);
       }
       return result;
   }
   ```

   MyOrderServiceImpl

   ```java
   @Override
   public String commitOrder(Long userId, Long stockId, String verifyHash) {
       ValueOperations<String, String> ops = redisTemplate.opsForValue();
       // 检查验证值是否合法
       String temp = ops.get("verifyHash:" + stockId + ":" + userId);
       if (temp == null || temp.trim().equals("")) {
           return "Illegal request";
       } else if (!Objects.equals(temp, verifyHash)) {
           return "Illegal request";
       }
       // 检查当前用户访问次数，超过20次直接返回fail
       String requestCount = ops.get("requestCount:" + stockId + ":" + userId);
       if (requestCount == null || requestCount.trim().equals("")) {
           ops.set("requestCount:" + stockId + ":" + userId, "0");
       } else if (Integer.parseInt(requestCount) > 20) {
           return "fail";
       }
       ops.increment("requestCount:" + stockId + ":" + userId);
       // 从redis检查库存
       String redisCache = ops.get("myStock:" + stockId);
       MyStock myStock;
       if (redisCache == null || redisCache.trim().equals("")) {
           myStock = myStockMapper.selectByPrimaryKey(stockId);
           if (myStock == null) {
               return "param error";
           }
           ops.set("myStock:" + stockId, JSON.toJSONString(myStock), 15, TimeUnit.MINUTES);
       } else {
           myStock = JSONObject.parseObject(redisCache, MyStock.class);
       }
       // 检查抢购是否已经开始
       if (System.currentTimeMillis() - myStock.getStartTime().getTime() < 0) {
           return "not started";
       }
       // 若库存充足，扣减库存，使用乐观锁防止超卖
       if (myStock.getSale() < myStock.getQuantity()) {
           redisTemplate.delete("myStock:" + stockId);
           int count = myStockMapper.updateSale(stockId, myStock.getSale());
           if (count < 1) {
               return "fail";
           }
           // redis缓存延时双删
           myAsyncMethod.deleteCache("myStock:" + stockId);
           // 发送创建订单的mq消息
           MyOrder myOrder = new MyOrder();
           myOrder.setStockId(stockId);
           myOrder.setName(myStock.getName());
           myOrder.setState(0);
           myOrder.setCreateTime(new Date());
           rocketMQTemplate.syncSend("myOrder", JSON.toJSONString(myOrder));
           return "success";
       }
       // 若库存不足，直接返回sale out
       return "sale out";
   }
   ```

   MyAsyncMethod

   ```java
   package com.wangzhe.rocketmq.seckill.async;

   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.data.redis.core.RedisTemplate;
   import org.springframework.scheduling.annotation.Async;
   import org.springframework.stereotype.Component;

   /**
    * @author wangzhe
    * @date 2020-12-25 16:15
    */
   @Component
   public class MyAsyncMethod {
       @Autowired
       private RedisTemplate redisTemplate;

       /**
        * 延时删除缓存
        *
        * @param key 缓存key
        */
       @Async
       public void deleteCache(String key) {
           try {
               Thread.sleep(200);
           } catch (InterruptedException e) {
               e.printStackTrace();
           }
           redisTemplate.delete(key);
       }
   }

   ```

5. 订单消费者，将订单写入数据库

   MyOrderConsumer

   ```java
   package com.wangzhe.rocketmq.seckill.mq;

   import com.alibaba.fastjson.JSONObject;
   import com.wangzhe.rocketmq.seckill.entity.MyOrder;
   import com.wangzhe.rocketmq.seckill.mapper.MyOrderMapper;
   import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
   import org.apache.rocketmq.spring.core.RocketMQListener;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.stereotype.Component;

   /**
    * @author wangzhe
    * @date 2020-12-25 12:05
    */
   @Component
   @RocketMQMessageListener(topic = "myOrder", consumerGroup = "myOrderConsumer")
   public class MyOrderConsumer implements RocketMQListener<String> {
       @Autowired
       private MyOrderMapper myOrderMapper;

       @Override
       public void onMessage(String message) {
           if (message == null || message.trim().equals("")) {
               return;
           }
           MyOrder myOrder = JSONObject.parseObject(message, MyOrder.class);
           myOrderMapper.insert(myOrder);
       }
   }
   ```

6. 设置定时任务处理超时订单

   MyOrderTimer

   ```java
   package com.wangzhe.rocketmq.seckill.time;

   import com.wangzhe.rocketmq.seckill.entity.MyOrder;
   import com.wangzhe.rocketmq.seckill.mapper.MyOrderMapper;
   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.context.annotation.Configuration;
   import org.springframework.data.redis.core.StringRedisTemplate;
   import org.springframework.scheduling.annotation.Scheduled;

   import java.util.Calendar;
   import java.util.Date;
   import java.util.HashSet;
   import java.util.List;

   /**
    * @author wangzhe
    * @date 2020-12-26 10:32
    */
   @Configuration
   public class MyOrderTimer {
       @Autowired
       private MyOrderMapper myOrderMapper;
       @Autowired
       private StringRedisTemplate redisTemplate;

       /**
        * 每分钟处理一次超时订单
        */
       @Scheduled(cron = "0 * * * * ?")
       private void closeTimeoutOrder() {
           myOrderService.closeTimeoutOrder();
       }
   }
   ```

   MyOrderServiceImpl

   ```java
   @Override
   public void closeTimeoutOrder() {
       // 查询超过30分钟未支付的订单
       Calendar calendar = Calendar.getInstance();
       calendar.setTime(new Date());
       calendar.add(Calendar.MINUTE, -30);
       List<MyOrder> list = myOrderMapper.selectTimeoutOrder(calendar.getTime());
       if (list != null && list.size() > 0) {
           // 修改订单状态为已关闭
           myOrderMapper.updateState(list, 2);
           // 恢复库存
           HashMap<Long, Integer> map = new HashMap<>();
           HashSet<String> set = new HashSet<>();
           for (MyOrder myOrder : list) {
               Long key = myOrder.getStockId();
               set.add("myStock:" + key);
               if (map.get(key) == null) {
                   map.put(key, 1);
               } else {
                   map.put(key, map.get(key) + 1);
               }
           }
           redisTemplate.delete(set);
           List<MyStock> myStockList = myStockMapper.selectByIdForUpdate(map.keySet());
           for (MyStock myStock : myStockList) {
               myStock.setSale(myStock.getSale() - map.get(myStock.getId()));
               myStockMapper.updateByPrimaryKey(myStock);
           }
           // 延时双删redis缓存
           myAsyncMethod.deleteCache(set);
       }
   }
   ```

7. 抢购页面

   sale.html

   ```html
   <!DOCTYPE html>
   <html xmlns:th="http://www.thymeleaf.org" lang="zh">
   <head>
       <meta charset="UTF-8">
       <title>抢购页面</title>
       <script src="/js/jquery.min.js"></script>
   </head>
   <script>
       $(function () {

       });

       function buy(id) {
           $.get("/order/verifyHash?userId=1&stockId=" + id, function (data) {
               if (data.length === 32) {
                   $.post("/order/commitOrder?stockId=" + id + "&userId=1&verifyHash=" + data, function (data2) {
                       alert(data2);
                   })
               }
           })
       }
   </script>
   <body>
   <table style="border: 1px">
       <thead>
       <tr>
           <th>id</th>
           <th>商品名称</th>
           <th></th>
       </tr>
       </thead>
       <div th:each="myStock : ${MyStockList}">
           <tr>
               <td th:text="${myStock.id}"></td>
               <td th:text="${myStock.name}"></td>
               <td>
                   <button type="button" th:onclick="|buy(${myStock.id})|">抢购</button>
               </td>
           </tr>
       </div>
   </table>
   </body>
   </html>
   ```

   MyOrderController

   ```java
   /**
    * 抢购页面
    *
    * @param model model
    * @return 抢购页面路径
    */
   @RequestMapping(value = "/sale", method = RequestMethod.GET)
   public String toSalePage(Map model) {
       model.put("MyStockList", myOrderService.getStockList());
       return "sale";
   }
   ```
